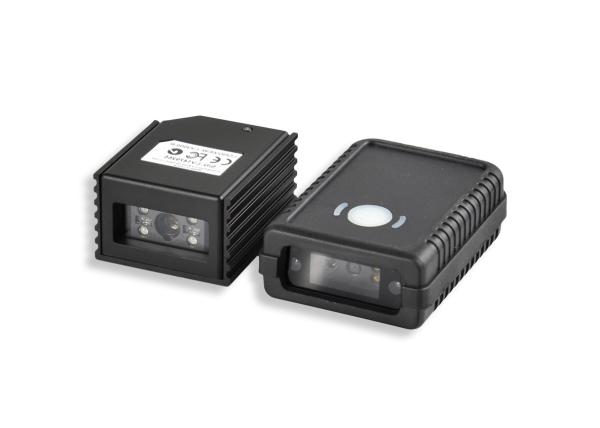

Portable Arduino Barcode Scanner Module Fast Scanning 2D Barcode Engine

    Buy cheap Portable Arduino Barcode Scanner Module Fast Scanning 2D Barcode Engine from wholesalers

    Buy cheap Portable Arduino Barcode Scanner Module Fast Scanning 2D Barcode Engine from wholesalers
    • Buy cheap Portable Arduino Barcode Scanner Module Fast Scanning 2D Barcode Engine from wholesalers
    • Buy cheap Portable Arduino Barcode Scanner Module Fast Scanning 2D Barcode Engine from wholesalers

    Portable Arduino Barcode Scanner Module Fast Scanning 2D Barcode Engine

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : LV3096R
    Certification : CE, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 1000 PCS/ week
    Delivery Time : within 5 working days after receiving the balance
    • Product Details
    • Company Profile

    Portable Arduino Barcode Scanner Module Fast Scanning 2D Barcode Engine

    Portable Arduino Barcode Scanner Module Fast Scanning 2D Barcode Engine


    Illumination

    The LV 3096R barcode scanner module that is LV3096 with a plastic protective box has two red LEDs for supplementary lighting, making it possible to scan bar codes even in poor light. The illumination of the LV3096R can be programmed On or Off.

    The LV3096R barcode scanner module uses red LEDs for illumination, so the module shows better decoding performance on barcodes printed in non-red colors. For applications involving red barcodes, it is advised to turn off the engine’s illumination and use non-red supplementary lighting (such as green) instead. The user can conduct some tests to determine the proper wavelengths to be used.


    Ambient Light

    The LV3096R barcode scanner module shows better performance with ambient light and it is well able to handle the flicker in fluorescent lights using 50--60Hz AC power. However, high-frequency pulsed light can result in performance degradation.


    Technical Specifications of LV3096R 2D Code Reader Module

    Product name2D Scan Engine
    Item numberLV3096R
    ProcessorIOTC 2D decoder chip 48MHz
    Interface TypeRS232/ USB
    Image Sensor752× 480 CMOS
    Symbologies2D: PDF417, Data Matrix, QR Code
    1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
    ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
    Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
    Reading Precision≥ 5mil
    Depth of Field*

    EAN13 (13mil) 55mm - 185mm;

    Code 39 (5mil) 55mm - 100mm;

    PDF 417 (6.67mil) 40mm - 130mm;

    Data Matrix (10mil) 40mm - 135mm;

    QR Code (15mil) 40mm - 160mm

    Symbol Contrast≥ 30% reflectance difference
    Scan Angle**

    Roll: 360°

    Pitch: ±55°

    Skew: ±55°

    Field of ViewHorizontal 36°; Vertical 23°
    Ambient Light0 ~ 100,000 LUX (natural light)
    Rated Power Consumption0.79W
    Operating Voltage5VDC
    Dimensions69.46(L)*48.11(W)*22.15(H)mm
    Current @ 5 VDC

    Operating Current 240 mA;

    Sleep Current <5.15 uA

    Weight80g
    Operating Temperature-20 ℃ to + 60 ℃
    Storage Temperature-40 ℃ to + 80 ℃
    Humidity5% - 95% ( non-condensing )
    CertificationFCC Part15 Class B, CE EMC Class B


    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
