RAKINDA M5 IP Camera And RGB Camera for Face Recognition Access Control

Scanmax Facial Module M5 Datasheet-EN.pdf

RGB Face Recognition Camera Product Description

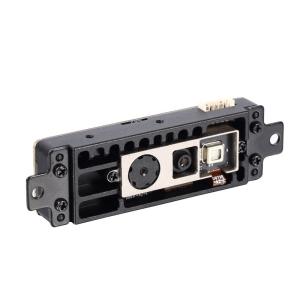

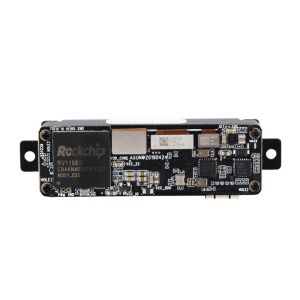

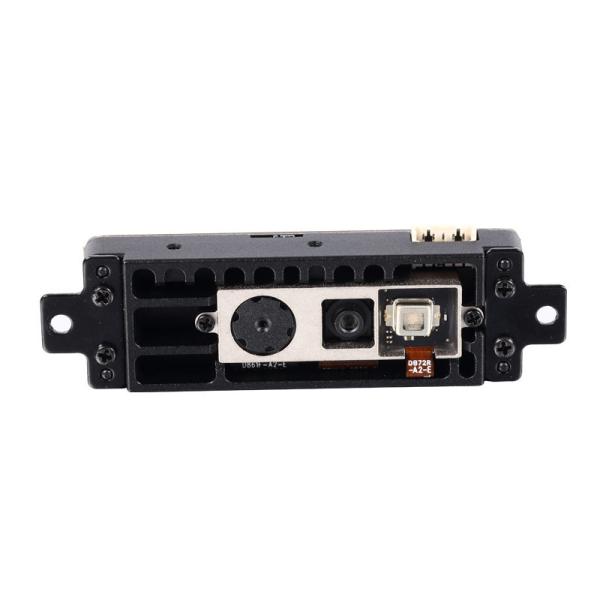

RAKINDA M5 product is a new generation of miniaturized RGBD cameras independently developed by Rakinda Internet of Things Technology Co., Ltd. The product integrates a 640 × 480 pixel TOF depth camera and a 5 million pixel RGB camera.
The miniaturized and ultra-thin size structure is suitable for various embedded and handheld detection terminals, and realizes functions such as face recognition, living body detection, scene recognition, and gestures. The product provides a complete SDK, and users can perform device integration and secondary development according to their own needs.

Product Features:
⚫Design based on TOF principle;
⚫High resolution, depth map resolution is 640×480;
⚫High accuracy, up to 0.1%;
⚫Using 940nm VCSEL light source to support outdoor applications;
⚫Miniaturized and ultra-thin design, the appearance size is 55mm × 18mm × 10.6mm, suitable for various embedded applications;
⚫Accurate synchronization and alignment between depth, IR and RGB

Product Parameters

⚫Note 1: Measurement distance: For white wall test with 90% reflectivity, the detection distance in the center area; reflectance has an impact on measurement distance, accuracy and accuracy.
⚫Note 2: Measurement accuracy: For the white wall test with 90% reflectance, the root mean square error of the repeated test in the center area.
⚫Note 3: Measurement accuracy: for the white wall test with 90% reflectivity, the error between the measurement distance and the true distance.
⚫Note 4: If the board-level power supply USB port 5V power current is greater than 1A, the power can be directly supplied through the USB port; if the current is less than 1A, power is supplied through the dedicated accessory cable.
⚫Note 5: The module form and embedded design must be used with the whole machine for heat dissipation design; refer to the design guide or contact the manufacturer for heat dissipation scheme.

Service Advantages

1.Professional service team, all-round one-to-one person follow-up.
2.Provide professional development kits to help customers solve various related software and hardware developing issues.
3.Two-year quality assurance, life-long maintenance and 24-hour service hotline guarantee the customers' interest.

We create a bright future with hand in hand and implement the business philosophy of customer first. Through continuous exploration and innovation, we aim to achieve win-win cooperation with customers in near future together!

Quality Advantages

1. The products are certified by CE of EU, FCC of USA and RoHS, and the quality is guaranteed.
2. Product components adopt international brand to ensure quality.
3. After 100% strict sampling inspection before products shipment, customers can take goods delivery with no worries at all.
