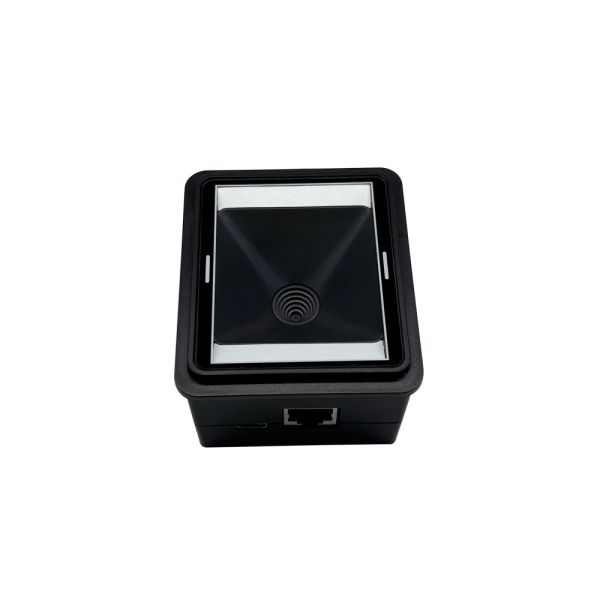

    OEM 2D Barcode Reader Module for Seamless System Integration

    Ask Lasest Price
    Brand Name : Rakinda
    Model Number : LV5500
    Certification : CE,FCC,ROHS
    Supply Ability : 100pcs per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    OEM 2D Barcode Reader Module for Seamless System Integration

    LV5500 is an OEM 2D barcode scanner module tailored for integrators seeking stable, accurate, and compact scanning solutions. Its wide interface support and flexible voltage options make it suitable for diverse hardware systems.


    Key Features:
    * Plug-and-play USB or serial communication (TTL, RS232, RS485)
    * Fast decoding of 1D and 2D barcodes (including low-contrast QR codes)
    * Small form factor: only 77.8×66.4×44.7mm
    * Low power consumption: <190mA at 5V
    * Custom OCR character set recognition (OCRA/OCRB)


    Parameters

    Scan PerformanceImaging sensor640×480 CMOS
    LightingWhite, LED 6500K
    Read code system2DPDF417, Data Matrix, QR Code,AZTEC
    1DAnd EAN-13,EAN-8,UPC-A,UPC-E,Code 39,Code 128,ISBN,Code 93,Code 11,UCC/EAN-128,GS1 Databar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Codabar,Standard 2 of 5,MSI-Plessey,GS1 composite code, et al
    Reading accuracy1D ≥6mil 2D≥10mil
    Typical reading of the depth of field10-200CM Alipay payment code
    20-120CM EAN13 13mil
    Symbol Contrast≥20%
    Bar code sensitivityTtilt ± 55°, deflection ± 55°, and rotation 360°
    Field of view AngleHorizontal, 66°, and 50° vertical

    Machinery

    Electrical Parameters


    Communication interfaceUSB (optional, HID, virtual serial port), TTL serial port; Customizable RS232, RS485
    Visual dimensions (mm)77.8(D)×66.4(W)×44.7 (H)
    Weight70g
    Working voltage

    Power supply is 1:4-6V (5V power supply) by default

    Power supply 2: customized 5V-16V wide voltage

    Note: Power supply 1 and power supply 2, choose one or the other, not at the same time

    Rated current(Typical value) is less than 190 mA (5V input)
    Enviromental ParameterWorking temperature-20℃~+60℃
    Storage temperature-40℃~+70℃
    Working humidity5%~95% (no condensation)
    Environmental light0~100,000LUX
    Thermal Shock ResistanceMaximum temperature60°C (140 °F)
    Minimum temperature-20°C (-4 °F)
    Cycle index30 minutes for high temperature; 30 minutes for low temperature
    Period24
