    RD6100 Kiosk Barcode Reader with OCR & NFC for Self-Service Terminals

    Ask Lasest Price
    Brand Name : Rakinda
    Model Number : RD6100
    Certification : CE,FCC,ROHS
    Supply Ability : 1000pcs per month
    • Product Details
    • Company Profile

    RD6100 Kiosk Barcode Reader with OCR & NFC for Self-Service Terminals

    Fixed Position Scanner Product Description:
    Enhance your customer interaction points with the RD6100 self-service kiosk barcode scanner. This versatile fixed scanner is perfect for retail kiosks, e-commerce pickup lockers, and information terminals. It excels not only at reading standard 1D/2D barcodes from screens and paper but also features advanced Passport OCR and ID Card OCR capabilities for secure identity verification. The optional NFC reader writer function allows for contactless card interactions, supporting payments or access control. Its compact design and IR/light sensor triggers enable a seamless, hands-free user experience.


    2D Fixed Scanner Key Features:
    * All-in-One Scanning Solution:
    Reads 1D/2D barcodes, passport MRZ, and various ID cards (OCR) for versatile application use.
    * Optional NFC Functionality: Acts as an NFC scanner for reading/writing to cards and NFC-enabled phones.
    * Compact and Durable: Small form factor with IP67 sealing, ideal for integration into space-constrained kiosks and terminals.
    * Smart Sensor Trigger: IR and light sensors automatically activate scanning, improving throughput and user convenience.


    Fixed Mount Barcode Scanner Parameters:

    Performance
    Image Sensor1280 * 1088 CMOSIllumination 3000K white LED
    Symbologies2DPDF417, Data Matrix, QR Code, Micro QR, Aztec, etc.
    1DEAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc
    PostalUSPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal, Japan Post
    OCRPassport OCR, Chinese ID Card, China Travel Permit OCR
    Physical
    InterfaceRS-232, USB, RS-485, Wiegand
    NFC (optional) 3Reading Distance Supported0-30mm
    FunctionsSupport reading card number and card type, reading and writing sectors, increasing and decreasing values, reading and writing files, file operations, key operations, contactless CPU card operation (ISO14443 Type A) and APDU.
    Supported CardsID card, NFC-equipped phone, Mi fare Classic, Mi fare Plus, Mi fare Ultralight/C/EV1, Mi fare De sfire, CPU card, NTAG2x series, NTAG42x series, ICODE 2, Type B card ,Felica card
    Operating Voltage5-24VDC±5%
    Current@5VDCNFC VersionNon-NFC Version
    Operating (RMS) 4 Idle220mA172mA
    175mA118mA

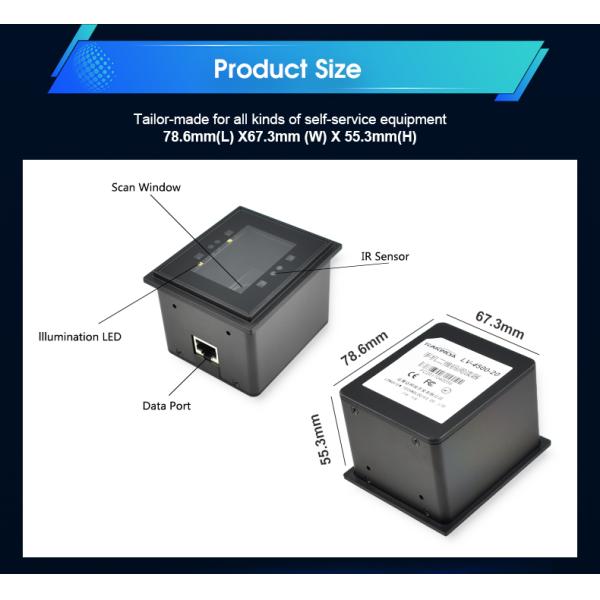

    Dimensions
    Weight132g
    NotificationBeeper, multi-colored LED indicator
    Environmental
    Operating Temperature Storage Temperature-20℃ to 60℃ (-4°F to 140°F)
    Humidity-40℃ to 85℃ (-40°F to 185°F) 5%~95% (non-condensing)
    ESD±15kV (air discharge) ±8kV (direct discharge)
    SealingIP67 (not including interface)
    Accessories
    CableOptional
    Optional
    Optional
    Optional
    Power AdapterUSB cable used to connect the scanner to a host device.
    RS-232 cable used to connect the scanner to a host device.

    RS-485 and Wiegand cables used to connect the scanner to a host device.

    DC5V power adapter to provide power for the scanner with RS-232 cable.
