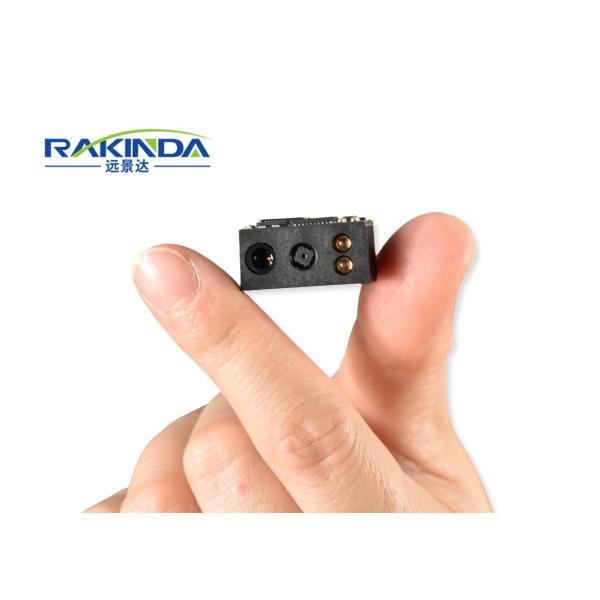

OEM Scan Engine QR Code Barcode Scanner Module For Scan QR Code / DM / PDF417

    Buy cheap OEM Scan Engine QR Code Barcode Scanner Module For Scan QR Code / DM / PDF417 from wholesalers

    Buy cheap OEM Scan Engine QR Code Barcode Scanner Module For Scan QR Code / DM / PDF417 from wholesalers
    • Buy cheap OEM Scan Engine QR Code Barcode Scanner Module For Scan QR Code / DM / PDF417 from wholesalers
    • Buy cheap OEM Scan Engine QR Code Barcode Scanner Module For Scan QR Code / DM / PDF417 from wholesalers

    OEM Scan Engine QR Code Barcode Scanner Module For Scan QR Code / DM / PDF417

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : LV3296-01
    Certification : FCC,CE,Rosh
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 10000 pcs per month
    • Product Details
    • Company Profile

    OEM Scan Engine QR Code Barcode Scanner Module For Scan QR Code / DM / PDF417

    OEM Scan Engine Barcode Scanner Module For Scan QR code / DM / PDF417​

    FEATURES
    Miniature and Ultralight Form Factor
    1. Ultra-compact, light and integrator-friendly, the LV3296 caters for miniaturization needs of OEM applications.

    Multiple Interfaces
    2. The LV3296 supports USB and TTL-232 interfaces to meet diverse customer needs.

    Two-In-One Design

    3. Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most space-constrained equipment.

    Outstanding Power Efficiency

    4. The advanced NLDC technology incorporated in the scan engine helps reduce the powerconsumption and prolong the service life of the device.

    Application Scenarios (as an accessory)

    5. Self-service cabinets used in e-commerce,express delivery services and smart homes; ATMs; kiosks; queue machines;lottery machines; certificate makers.
    OEM Scan Engine QR Code Barcode Scanner Module For Scan QR Code / DM / PDF417

    SPECIFICATIONS

    PerformanceImage Sensor640×480 CMOS
    IlluminationRed LED 625±10 nm
    AimingRed LED 625±10 nm
    Symbologies2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Chinese Sensible Code
    1D Code 128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand)
    Resolution*≥4mil
    Typical Depth of Field*EAN-13 50mm-365mm (13mil)
    Code 39 40mm-165mm (5mil)
    Data Matrix 35mm-115mm (10mil)
    QR Code 35mm-145mm (15mil)
    PDF 417 45mm-115mm (6.67mil)
    Symbol Contrast*≥25%
    Scan Angle**Roll: 360°, Pitch: ±50°, Skew: ±50°
    Field of ViewHorizontal 44°, Vertical 33.2°
    Mechanical/InterfaceTTL-232, USB (HID-KBW, COM Port Emulation, HID-POS)
    ElectricalRated Power Consumption437mW (typical)
    Operating Voltage3.3 VDC±10%
    Current@3.3VDCOperating 141mA (typical), 198mA (max.)
    Standby 10mA
    Sleep <10uA
    Dimensions21.2(W)×14(D)×11.1(H)mm
    Weight4g
    EnvironmentalOperating Temperature-20℃ to 50℃(-4°F to 122°F)
    Storage Temperature-40℃ to 70℃(-40°F to 158°F)
    Humidity5% to 95% (non-condensing)
    Ambient Light0~100,000lux
    CertificationsFCC Part15 Class B,CE EMC Class B
    EVKSoftware development board, equipped with a trigger button, beeper and RS-232 & USB interfaces.
    AccessoriesCableUSB Used to connect the EVK to a host device.
    RS-232 Used to connect the EVK to a host device.
    Power AdapterDC5V power adapter used to provide power for the EVK

    OEM Scan Engine QR Code Barcode Scanner Module For Scan QR Code / DM / PDF417
    FAQ
    Q1: What is your payment method?
    A1: We accept online credit card, TT, Paypal, Western Union.
    Q2: Can I visit your factory:
    A2: Yes, you are warmly welcome.
    Q3: How long is your warranty time:
    A3: 1 Year.
    Q4: Where can we download the user manual of the scanners?
    A4: We will send by email after you get samples.
