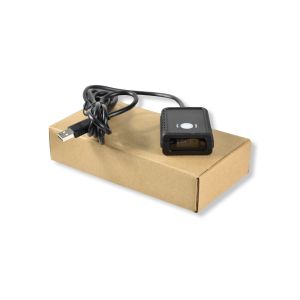

USB Embedded QR Code Barcode Scanner Module , Lightweight CMOS Sensor Module

    Buy cheap USB Embedded QR Code Barcode Scanner Module , Lightweight CMOS Sensor Module from wholesalers

    Buy cheap USB Embedded QR Code Barcode Scanner Module , Lightweight CMOS Sensor Module from wholesalers
    • Buy cheap USB Embedded QR Code Barcode Scanner Module , Lightweight CMOS Sensor Module from wholesalers
    • Buy cheap USB Embedded QR Code Barcode Scanner Module , Lightweight CMOS Sensor Module from wholesalers

    USB Embedded QR Code Barcode Scanner Module , Lightweight CMOS Sensor Module

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : LV3096R
    Certification : FCC,CE,ROSH
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 10000 pcs per month
    • Product Details
    • Company Profile

    USB Embedded QR Code Barcode Scanner Module , Lightweight CMOS Sensor Module

    USB Embedded QR Code Scanner Module Lightweight CMOS Sensor Module​


    2D Barcode Decoder Chip: The engine armed with the state-of-the-art 2D barcode decoder chip invented by demonstrates unprecedented reading performance.


    Two-In-One Design: Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easy for integration.


    High Performance & Ultra-Low Power Consumption: The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.


    All-Round Scanning Capability: It can read barcodes on virtually any medium - paper, plastic cards, mobile phones and LCD displays.


    PerformanceImage Sensor640×480 CMOS
    IlluminationRed LED 625±10 nm
    AimingRed LED 625±10 nm
    Symbologies2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Chinese Sensible Code
    1D Code 128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand)
    Resolution*≥4mil
    Typical Depth of Field*EAN-13 50mm-365mm (13mil)
    Code 39 40mm-165mm (5mil)
    Data Matrix 35mm-115mm (10mil)
    QR Code 35mm-145mm (15mil)
    PDF 417 45mm-115mm (6.67mil)
    Symbol Contrast*≥25%
    Scan Angle**Roll: 360°, Pitch: ±50°, Skew: ±50°
    Field of ViewHorizontal 44°, Vertical 33.2°
    Mechanical/InterfaceUSB ,RS232
    ElectricalRated Power Consumption437mW (typical)
    Operating Voltage5VDC±10%
    Current@3.3VDCOperating 141mA (typical), 198mA (max.)
    Standby 10mA
    Sleep <10uA
    Dimensions69(W)×48(D)×22(H)mm
    Weight300g
    EnvironmentalOperating Temperature-20℃ to 50℃(-4°F to 122°F)
    Storage Temperature-40℃ to 70℃(-40°F to 158°F)
    Humidity5% to 95% (non-condensing)
    Ambient Light0~100,000lux
    CertificationsFCC Part15 Class B,CE EMC Class B
