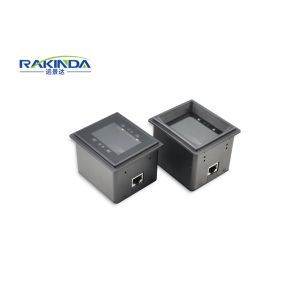

Fixed Mobile QR Code Reader Turnstile Kiosk Barcode Scanner Module
Newland FM25 Turnstile Kiosk Fixed Barcode Mobile QR Code Reader
Metal Case IP65 Industrial Barcode Scanner for Payment Terminal
Rakinda OEM Phone Screen QR Code Scanner for Metro Subway Check-in
Description of Mobile QR Code Reader
FM25 is one of our best sale 2d barcode scanner. It's mainly used
for mobile screen QR code reading, for payment, access control.
With instant start and fast decoding, this scanner can scan and
decode a barcode in 0.3s. Designed with power saving electronics,
it's much low power consumption. The IR sensor in the scanner
exhibits an improved sensibility in activating the scanner to scan
once barcodes are presented.
Features of Industrial Barcode Scanner
1. Industrial Enclosure, Metal housing with glass cover on top,
Dirt Proof
2. USB, RS232 Interface. Optional Wiegand 26/34 Converter, or
access control board.
3. White LED light source, IR sensor, Work perfect even in darkness
4. Good to read printed 1D/2D barcodes, as well as phone screen QR
codes.
5. Support USB-HID KBW, HID-POS, USB-CDC, RS232
FM25 Technical Parameter
| Product name | Mobile QR Code Reader |
| Item number | FM25 |
| Interface | USB, RS232 |
| Image Sensor | 752 x 480CMOS |
| Symbologies | 2D: PDF417, Data Matrix, QR Code, Chinese Sensible Code
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey, etc. |
| Precision | 5 mil |
| Light Source | White LED |
| Scan Mode | Sense Mode, Continuous Mode, Command Control |
| Drop | 1.5m |
| Power Consumption | 534mW (Typical) |
| Weight | 300g |
| Dimensions | 78.7mm(L)x 67.7mm(W)x 53mm(H) |
| Notification | Beep, LED Indicator |
| Operating Temperature | -20 ℃ to +60 ℃ |
| Storage Temperature | -40 ℃ to +70 ℃ |
| Humidity | 5% - 95% ( non-condensing ) |
| Certification | CE, FCC, RoHS |
Applications:
Metro Station Ticketing Machine, Access Control Turnstile Barrier
Gates, Mobile Payment Self-ordering Machine, etc.
Company Advantages:
1. Rakinda has been in Automatic Identification and Internet of
Things since 2000
2. Several offices in Guangzhou, Shenzhen, Xiamen, Suzhou, Beijing
and Chongqing.
3. We have more than 10 R&D personnels with over 20 years
experience.
4. We can ship with fast express within 24 hours, and arrive
customer in 3~7 days.
Company Profile:
Shenzhen Rakinda Technologies Co., Ltd, established in 2000, has
been focusing on providing innovative IOT products for clients
based on barcode scanner, facial recognition and RFID technology.
Our main products include LV30 series small 2D barcode scan engine,
4500 series fixed mount barcode scanner for vending machine,
turnstile and Kiosk, LV3000H fixed mount barcode reader for kiosk
to scan paper printed code and MRZ on passport, as well as F2/F3
series face recognition terminal with temperature measurement, and
TF86 hand sanitizer dispenser thermometer. Our products enjoy a
good reputation worldwide. Please kindly contact us to know more
about products and company partnership.
